Source of gas smell 200

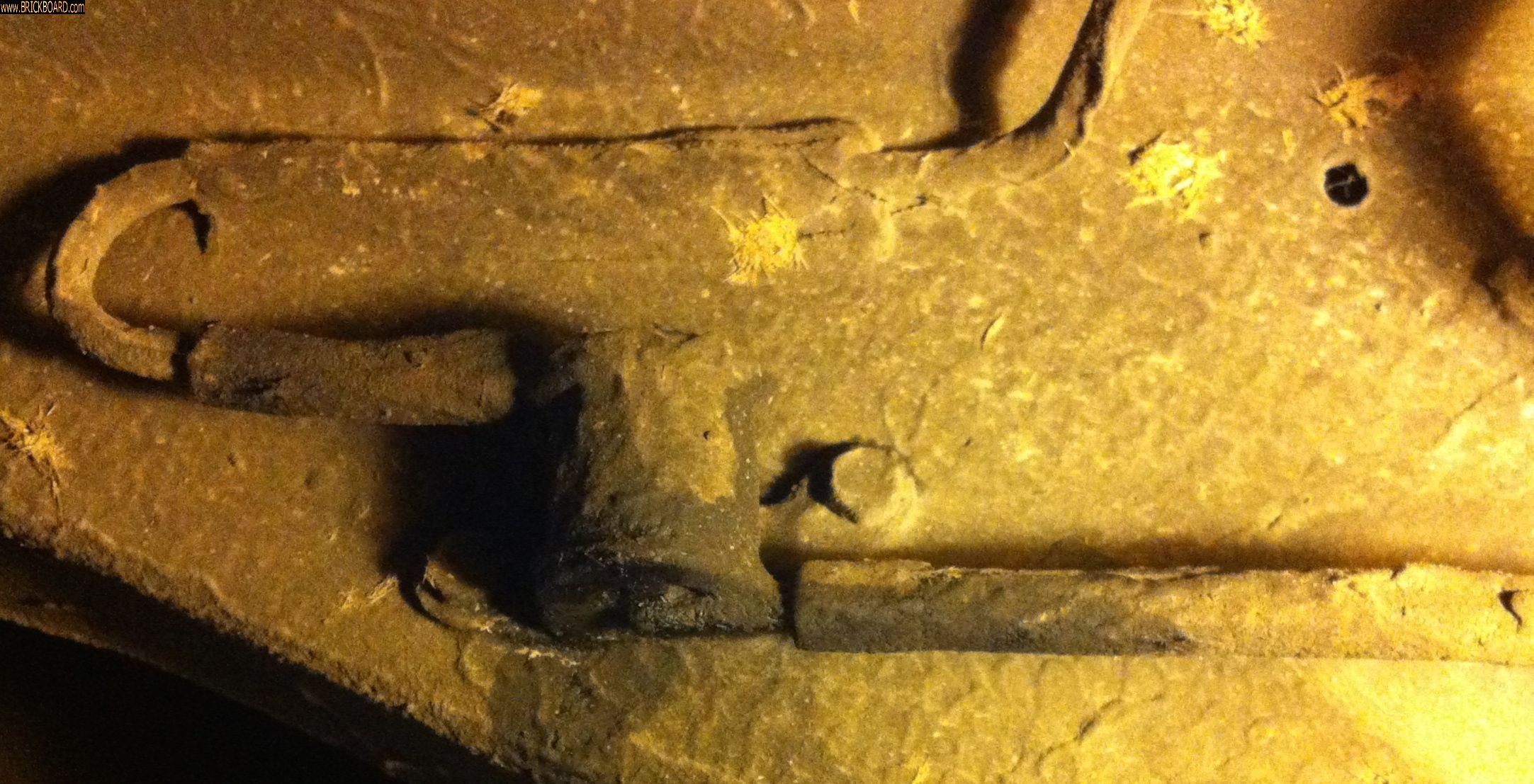

I should know what this part is but I don't. It is located on the fuel return line on my 1983/242/B21ft. It maybe the source of the gas smell. Any help identifying this part would be appreciated.

Thanks









  REPLY TO THIS MESSAGE    PRINT   SAVE

Picture Shows the Rollover Valve 200


The object depicted in your photo is the rollover valve. It is there in case the car turns over in an accident and prevents the loss of fuel through the vent line.

Hard to tell from the photo, but you either need to replace the valve (which is plastic) or the hoses on either side, or both.

I've had leaks show up in these hoses on two of my cars (the valves themselves were not the problem). The leaks were found during the portion of the California smog testing which checks the integrity of the fuel evaporative system.

Tatra Mike
San Diego, California

1985 244 "Alfsen" (wife's car - the good one)
1984 245 "Buster" (the kid's car, now sold)
1985 245 "Cosmo" (parts car, sold off for move to WA)
1985 245 "Daisy" (back seat down, full of tools, the work truck)
1985 245 "Earl (CA vehicle 'retirement' program)








  REPLY TO THIS MESSAGE    PRINT   SAVE

Picture Shows the Rollover Valve 200

Wow! That's good to know. The learning process continues for me on these cars. Thanks!








  REPLY TO THIS MESSAGE    PRINT   SAVE

Picture Shows the Rollover Valve 200

I'll second that Wow! good to know. I've always seen that part but never gave it a second thought -- guess 'cause it's mostly trouble free. When I worked for a Jaguar dealer in the early '80s if an XJ6 got towed in for "no start" the first place to look was a "rollover switch" for the fuel pump in the trunk. They would get tripped for some reason - and then needed to be reset manually. -- Dave








  REPLY TO THIS MESSAGE    PRINT   SAVE

Here's the pic 200


I don't know what it is either. But someone will.





--
'80 DL 2 door, '89 DL Wagon








  REPLY TO THIS MESSAGE    PRINT   SAVE

Here's the pic 200

Could this be a port where you measure fuel pressure?








  REPLY TO THIS MESSAGE    PRINT   SAVE

Here's the pic 200


In K-Jet systems line pressure and control pressure are checked wih the gauge installed between the control pressure regulator and the fuel distributor.


--
'80 DL 2 door, '89 DL Wagon








  REPLY TO THIS MESSAGE    PRINT   SAVE

Source of gas smell 200

Fuel Pressure regulator? Dunno, I cant see the picture. All I get is a little black box with an x in it.







<< < > >>
