I'm reinstalling dual SUs on my '67 220. Where do the throttle springs hook on the engine / manifold ? They were long gone since I have owned the car.

Thanks

Greg

Greg;

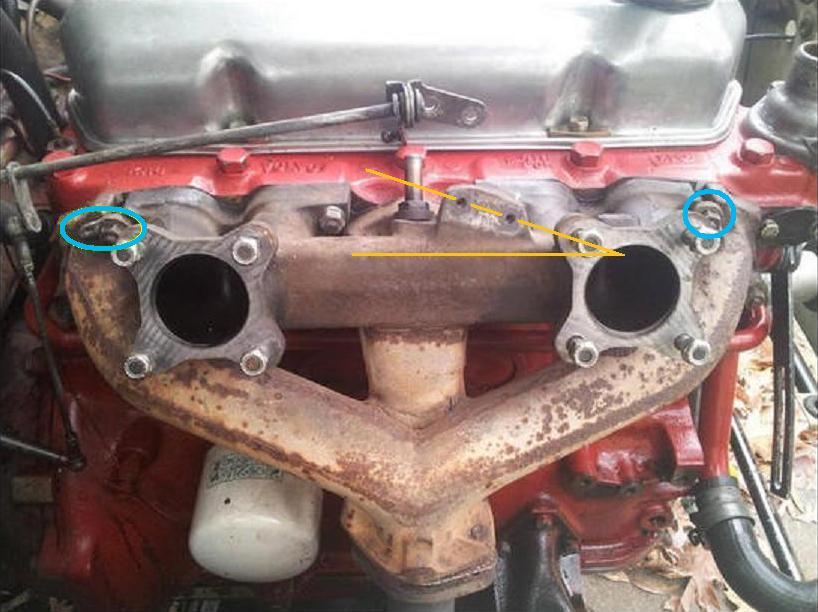

Early carbs had Throttle Return Springs hooked to these heavy loop-washers (Blue) under Manifold Bolts (later, three-bolt carbs had TRS contained on throttle-shafts, so they did not need these loop-washers).


See also: http://www.sw-em.com/manifolding_notes.htm#factory_manifolds

Cheers

these are they
https://www.ebay.com/itm/VOLVO-AMAZON-122-121-P-1800-PV-544-WASHERS-MANIFOLD-WITH-SPRING-ANCHOR/332453289382?hash=item4d67c29da6:g:g40AAOSwo6lWMbVr:rk:1:pf:0

The washers retaining the manifold that correspond to the throttle lever were special, with a built in hole for the spring to hook onto. -- Dave
