Preparing to flush AW71 (Auto Trans) found that there is a line from the trans to the bottom of the radiator; however, the return line does not run directly from the top of the radiator to the trans. Tracing finds that it runs to an ATF auxiliary cooler that is hidden down between the air cond radiator (very front radiator) and the turbo intercooler. It then leaves the aux cooler and runs back to the trans. Along the way is a junction spot.

It seems that the best place to attach the tubing for flushing would be at the junction after it leaves the aux cooler and not at the top radiator point.

Please advise 1. Does your '89 760 Turbo or similar have the aux cooler? (I don't know how common/uncommon these were) -- 2. If so, do you have the same junction point? -- 3. Is this the best place to attach the tubing?

I've not yet traced the lines under the vehicle back to the trans itself to verify that the upper line is the return but will do so. Also, I believe if I flush at the top rad point -- it will work -- yet will not flush fluid out of the aux cooler. It also seems as a convenient place to add the tubing rather than work at the plastic rad point.

Thanks!




--
dnvolvo '89 765T 200K - '91 245 100K

My 89 740 turbo has it. I think it was a standard item on the turbos. Sounds like you got the plumbing figured out correctly.
--
Paul NW Indiana '89 740 Turbo 110,000

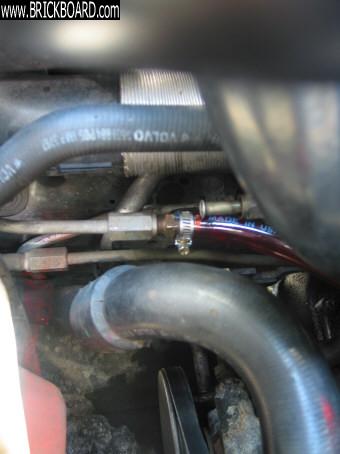

Thanks! Went ahead and flushed at this junction connection point. Easy to Access. Worked well. About 1 qt per 45 secs or 2 qts per 1 1/2 minutes (at idle). Drained pan first (2 qts). Then flushed 12 qts through as I had 3 (3 gal size) containers of Dextron III. Fluid a bit dirty, but did not seem too bad. Last flushed about 40K ago. Last service was pan drain only at about 20k ago. Replaced Trans drain plug with new plug and compression washer. Had a copper washer. Volvo part now calls for compression washer.

--
dnvolvo '89 765T 200K - '91 245 100K
