M40 Gearbox Help 444-544

posted by  lelshaddai on  Wed Aug 3 15:25 CST 2016
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS] [RELATED]

I redid the seals and gaskets in my M40. I then reinstalled the gearbox. Now it grinds trying to get it into 2nd either upshifting or downshifting. No trouble with any other gear. I thought I may have dislodged something When I pulled the front and covers to replace gasket. I have now pulled the gearbox again.

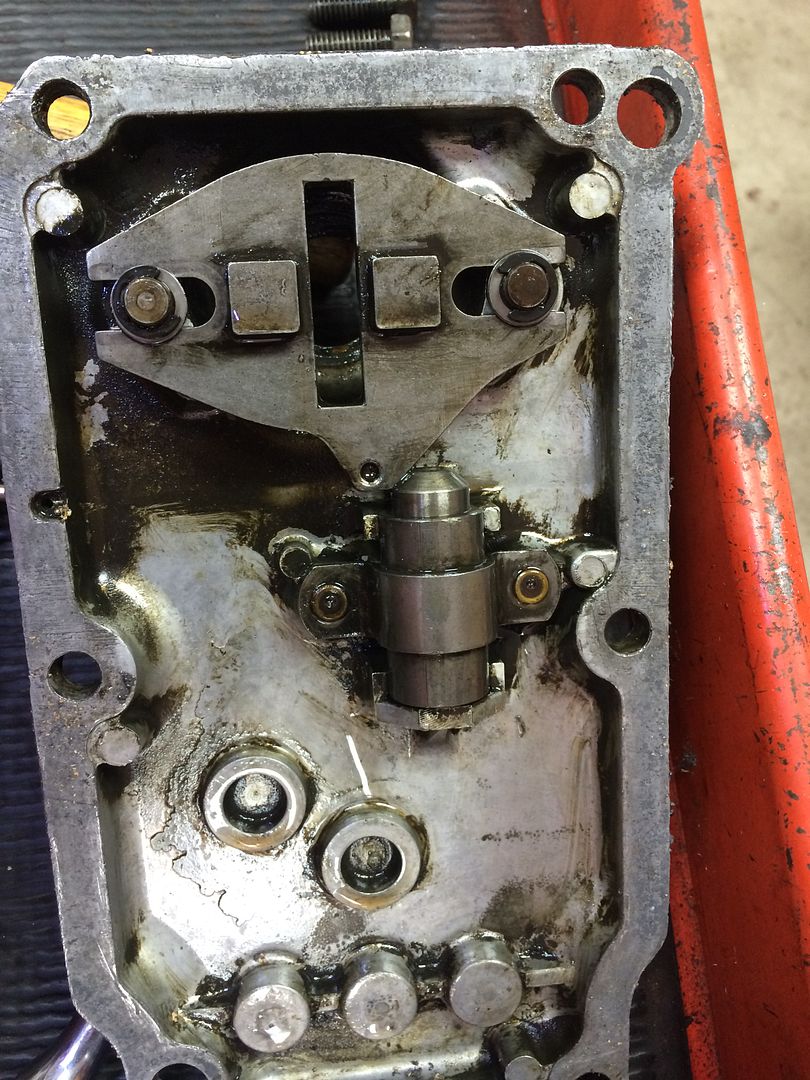

When I took the top cover off the spring was just lying on top. If it was off would it cause this? photo 2016-08-03 12.35.04_zpslpvhnk9x.jpg photo 2016-08-03 12.20.23_zpswnemg873.jpg

I do not see any signs of wear on the gears.

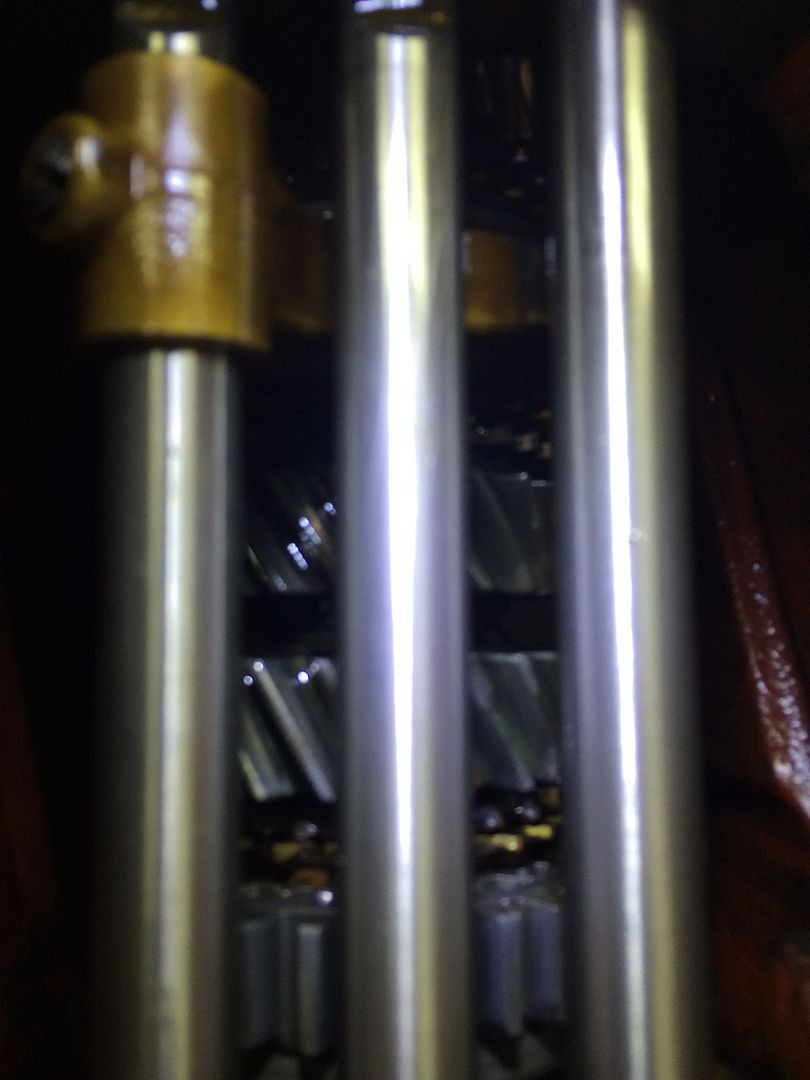

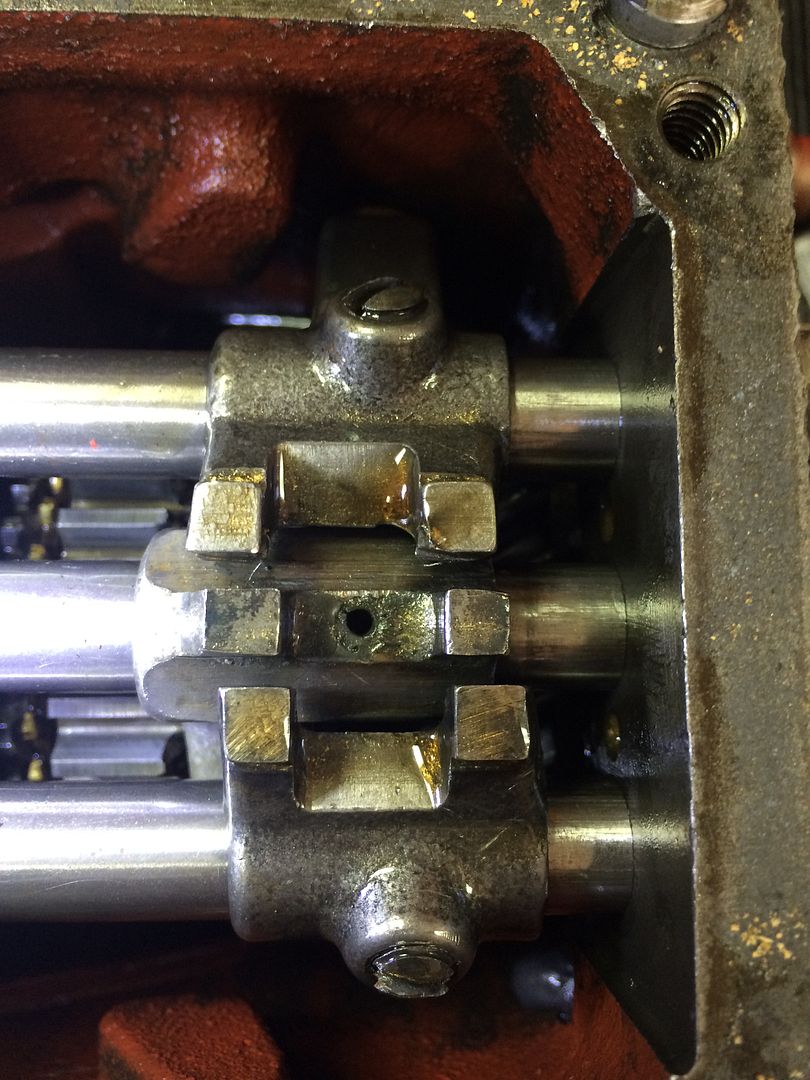

photo 2016-08-03 12.20.16_zpslioapa4b.jpg photo 2016-08-03 12.20.09_zpsdjjndrre.jpg photo 2016-08-03 12.04.53_zpshwwkm344.jpg photo 2016-08-03 12.04.53_zpshwwkm344.jpg

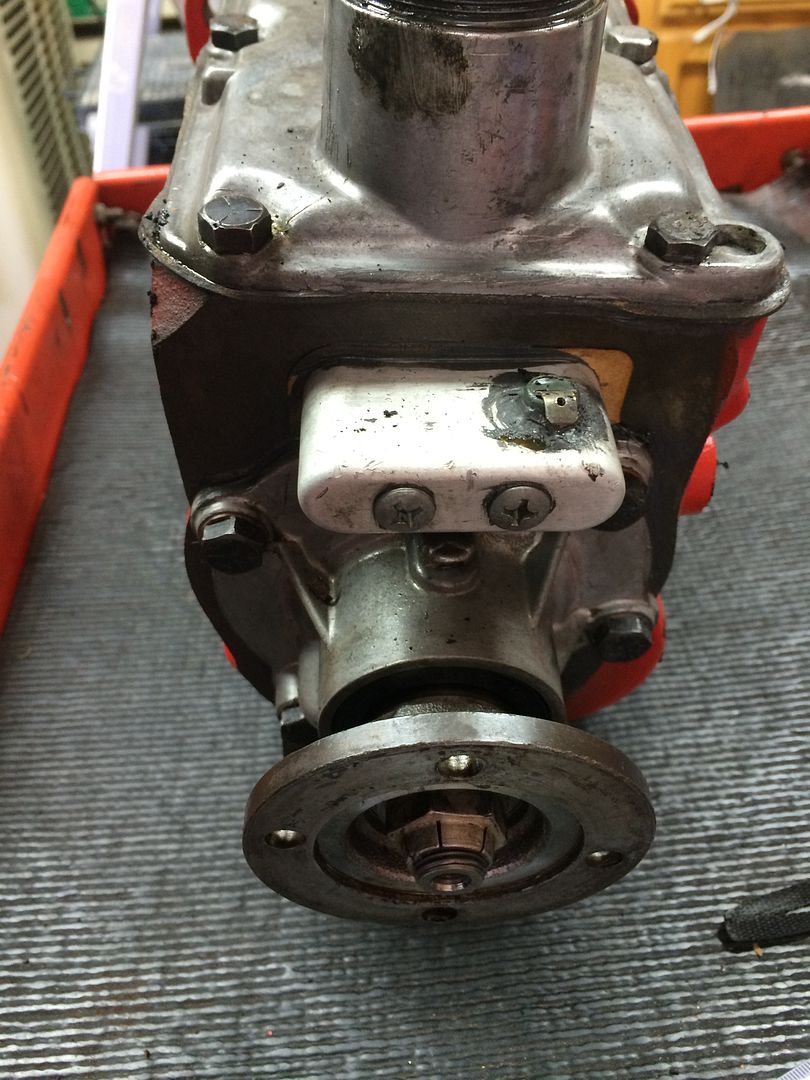

Is the spade switch on top of the rod cover backup lights?

photo 2016-08-03 12.04.53_zpshwwkm344.jpg

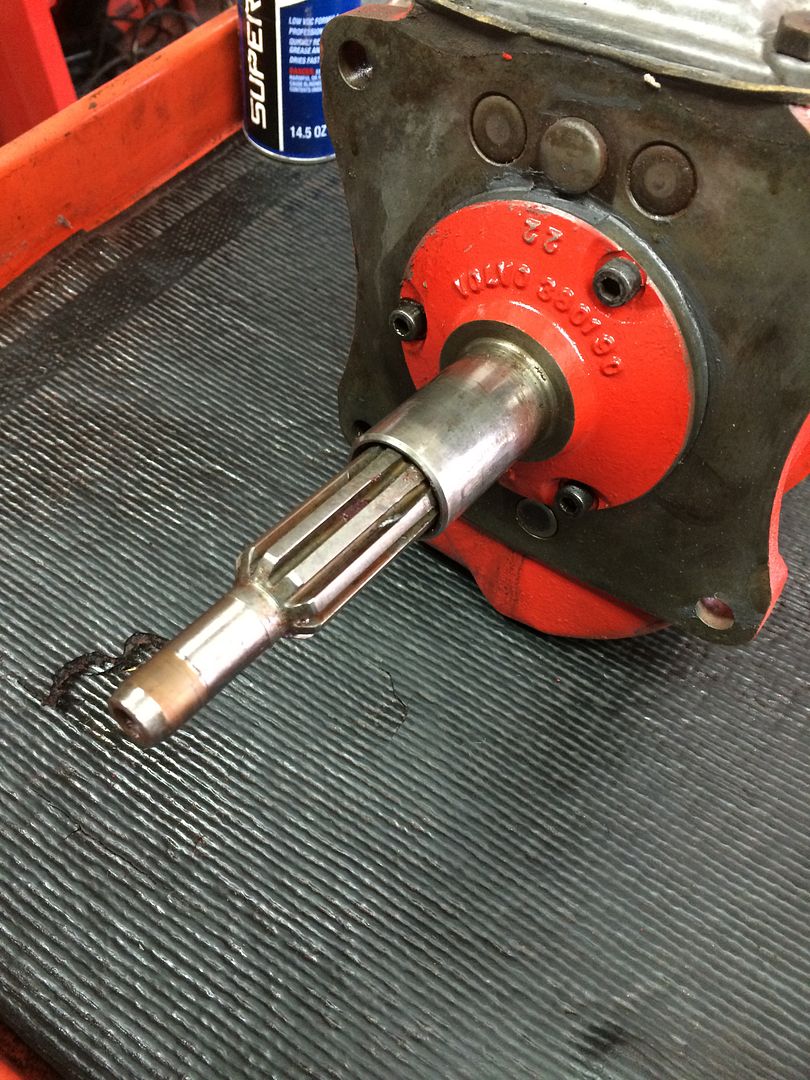

There is gear oil on the splines and shaft. Dripped down front of gearbox. I had replace main seal. May not have worked.
photo 2016-08-03 12.04.46_zps9xnk6pf8.jpg

Replaced clutch.
photo 2016-08-03 11.56.34_zpsmnfe1nim.jpg

Thoughts?
