and another pic 200 1986

posted by  Sven's Maintainer on  Thu Nov 15 06:31 CST 2007
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
last visit: Sun Sep 16 20:44 CST 2012
[RELATED]

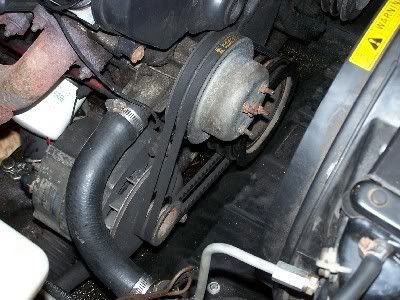

Here's a shot of the overall belt layout.

You get a pretty good view in this 245 due to the electric radiator fan with it's very shallow fan shroud. Also - the a/c belt has been removed. So there's no belt on my car on the most forward grove on the main crank pulley.

Hope these pics help.
--
Sven: '89 245 NA, 951 ECU, expanded air dam, forward belly pan reaches oem belly pan, open-front airbox, E-fan, 205/65-15 at 50 psi, IPD sways, no a/c-p/s belt, E-Codes, amber front corner reflectors, quad horns, tach, small clock. Wifemobile '89 245
