Adjusting 940 gear linkage..could be faulty NSS too 900

posted by  Amarin on  Sun Dec 13 23:50 CST 2015
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
last visit: Thu Oct 23 22:42 CST 2014
[RELATED]

Dear Spook,

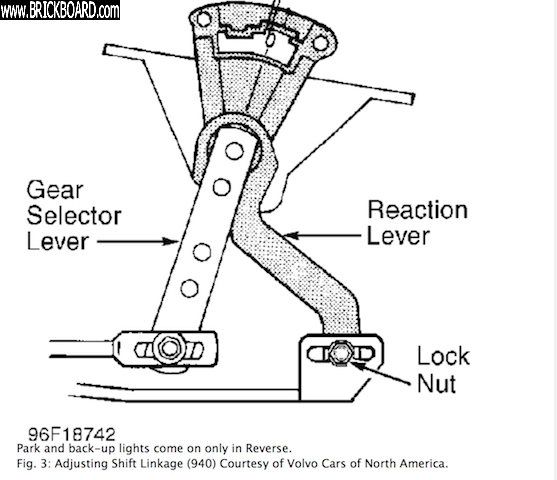

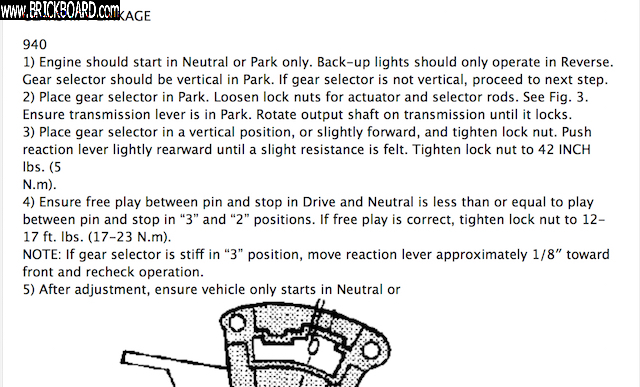

I believe the "linkage adjustment" info you're looking for are as below. Out of adjustment may result the neutral safety switch (NSS) in slightly wrong position thus no start.

Sorry I can't comment regarding the microswitch as my 1994 940 version don't have such switch, only the NSS. I think you could try playing with the gear lever in P or N while key in KPIII, just to test if the NSS is really faulty/worn out. Maybe do this before meddling with linkage adjustment as below.

As for my car I did meddle with the adjustment one time ago after few no start situations, only it turned out to be faulty NSS. The NSS that came with the car lasted about 15 years.

Go to (this includes 940 adjustment too):
http://www.volvotips.com/index.php/850-2/volvo-850-s70-v70-c70-service-repair-manual/volvo-850-automatic-transmission-service-manual/






Regards,
Amarin.






THREADED THREADED EXPANDED FLAT PRINT ALL
MESSAGES IN THIS THREAD

New No start: instrument panel lights all on ('93 940 156K) [900]
posted by  spook  on Sun Dec 13 15:03 CST 2015 >


<< < > >>
