M41 Rebuild Shots 120-130

posted by  122_Canadian on  Sun Jun 18 18:03 CST 2006
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
last visit: Tue Oct 20 07:51 CST 2009
[RELATED]

Here are a few shots of my M41 rebuild.

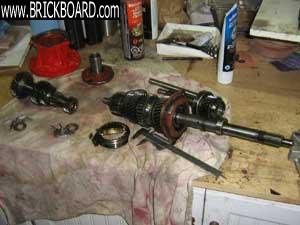

All a part and cleaned up - no wear! These things are amazing.

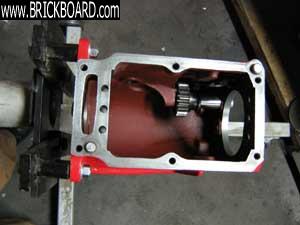

I buffed the outside of the case until it was smooth and then treated it to a coat of paint.



The top had a little wear, so I notched the warn sides with a small file. Then once it was cleaned out, a 1/16" aluminum plate was glued in with JB-Weld. Then ground to fit, and the threads were cut by hand. Should work. Shifts great on the engine stand.



This is the finished product. Far to clean to put in the car!
