early 240 ignition module 120-130

posted by  fervus on  Sat Feb 4 20:51 CST 2012
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
last visit: Sun Sep 23 01:37 CST 2012
[RELATED]

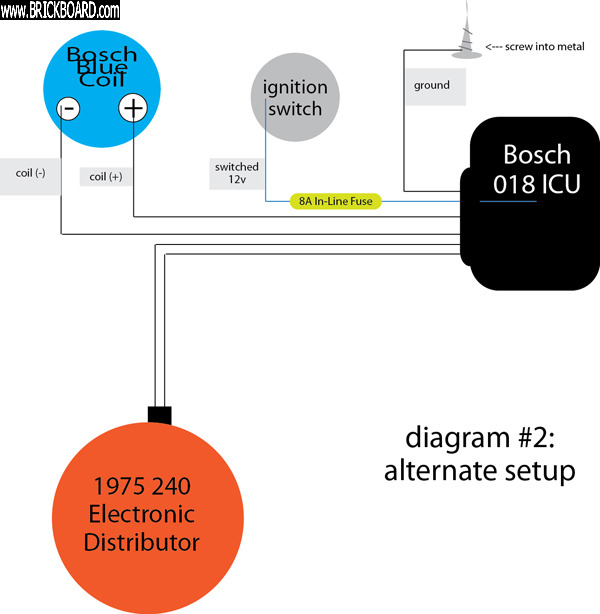

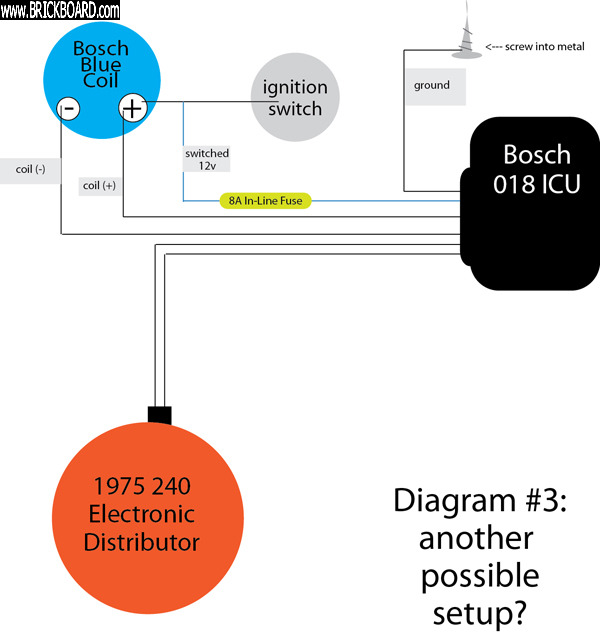

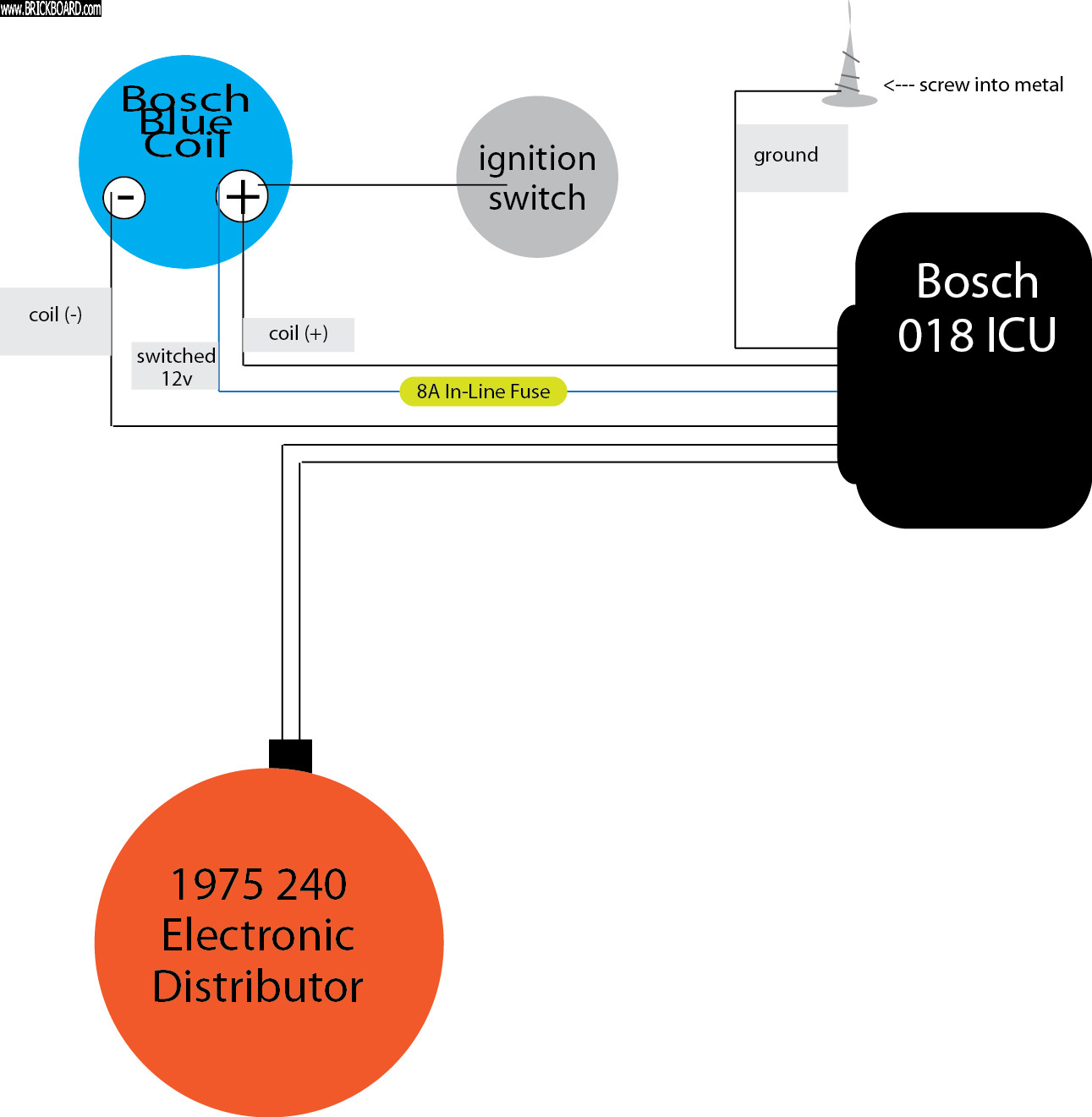

One last question about the wiring. Which one of these three diagrams is correct? I have the bosch blue coil and I cut my old one out so I have the power wire going directly to the + terminal on the coil, so accessing that isn't an issue. I just want to make sure I don't let the magic smoke out of any of my shiny new parts.







Thanks!!
--
Charles McNally - istillroll.com






THREADED THREADED EXPANDED FLAT PRINT ALL
MESSAGES IN THIS THREAD

New ANSWERED early 240 ignition module [120-130]
posted by  fervus  on Thu Jan 19 13:17 CST 2012 >


<< < > >>
