Green Book Errors... EDIT for another one 200 1990

uid 18083's pic
posted by  lucid on  Tue Mar 10 06:01 CST 2009
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
last visit: Fri Oct 24 12:31 CST 2014
[RELATED]

"BTW, folks, can you spot the errors in these drawings? Volvo factory manuals are the best, but not error-free. (None affect this particular topic.)"

Here are two, I think.


Legend:

1) Item F is not "Reversing (back-up lights) lights", an expanded error from the '87-'88 greenbook (spit) where they were just (incorrectly) "Back-up Lights".

2) Saying "no other function" for Fuse 15, also an '87-'88 vintage error.

EDIT:
I have to agree with Tony – an "a" terminal is normally closed. So those main HL relay terminals should be labeled 87 and 87b (not 87 a).

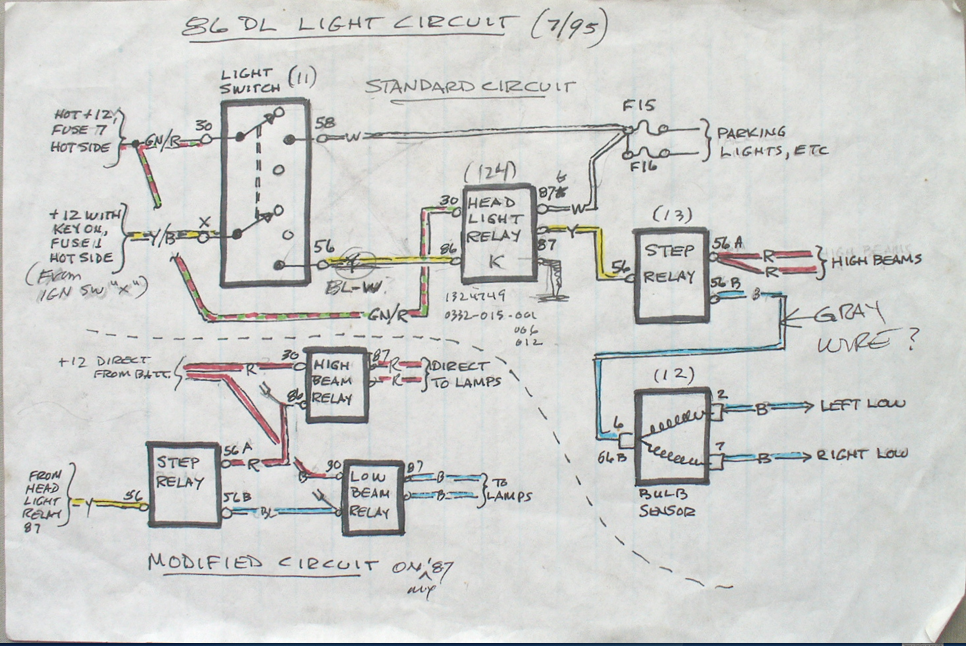

The relay # is 1324749-9 and it's also used in the 700/900 cars where the diagrams clearly show 87 & 87b. Some time ago I made that correction to my clunky home-brew diagram below:




--
Bruce Young, '93 940-NA (current), 240s (one V8), 140s, 122s, since '63.






THREADED THREADED EXPANDED FLAT PRINT ALL
MESSAGES IN THIS THREAD

New Everyone's flashing me! Tail lights out (where's lucid?) [200][1990]
posted by  Laramie  on Mon Mar 9 14:35 CST 2009 >


<< < > >>
