Fuse box and interior lights. 120-130

uid 10468's pic
posted by  yogui on  Mon Aug 7 07:51 CST 2006
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
last visit: Tue Apr 30 15:41 CST 2013
[RELATED]

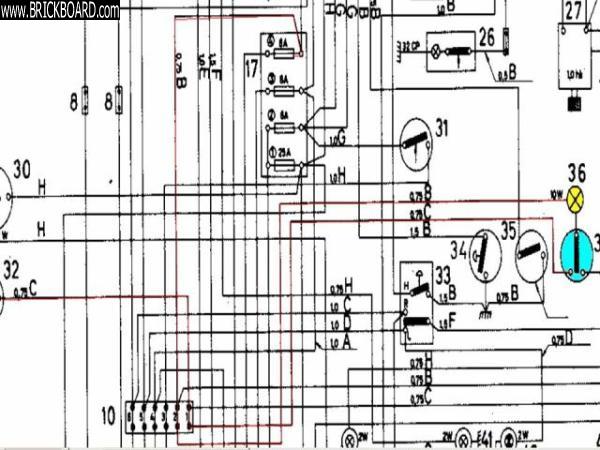

25 Amp (the small one) is fuse #1 (source: electric diagram 123Gt 1966 owner's manual). The #4 is the fuse on the other side (fuse #2 is near #1). Yes, in the electrical diagram the fusebox is upside down.


--
Joaquin / Rojo 121 / Lima, Peru
