Clutch Linkage Setups 444-544

posted by  malloy1 on  Sun Feb 20 16:39 CST 2011
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
last visit: Sun Oct 12 17:44 CST 2014
[RELATED]

The problem I see is that the clutch linkage on the P210 wants to go in a downward direction. So you just ran the push rod directly into the Clutch MC? I figure the angle would be too steep, and a pivot/linkage would have to be used to flatten out the angle.

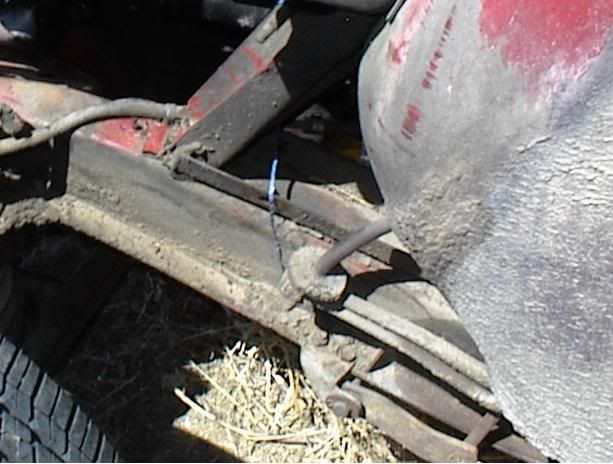

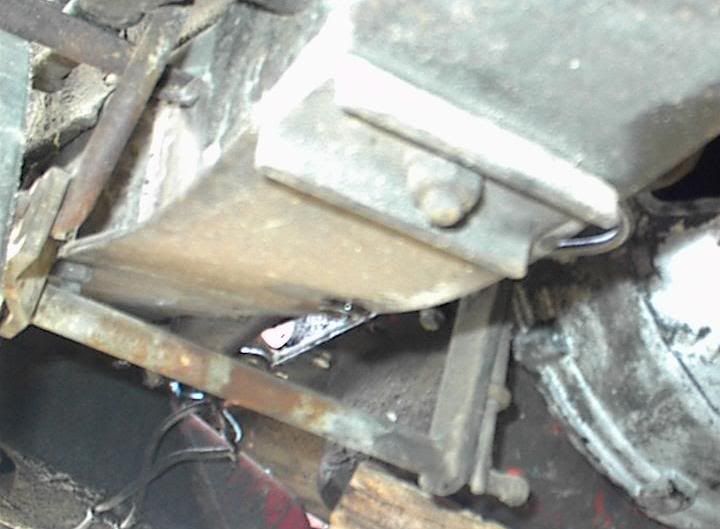

None of the pictures I've taken really shows the area correctly.

Photobucket

Photobucket

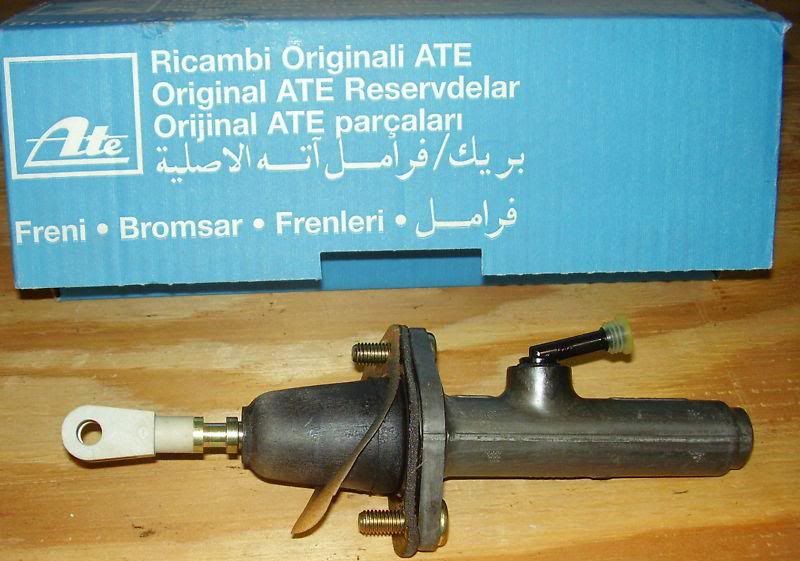

This is the MC I've been playing around with:

Photobucket
