later MC adapter ring 120-130

posted by  Old Kombi on  Tue Sep 16 12:37 CST 2008
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
last visit: Thu Sep 30 01:42 CST 2010
[RELATED]

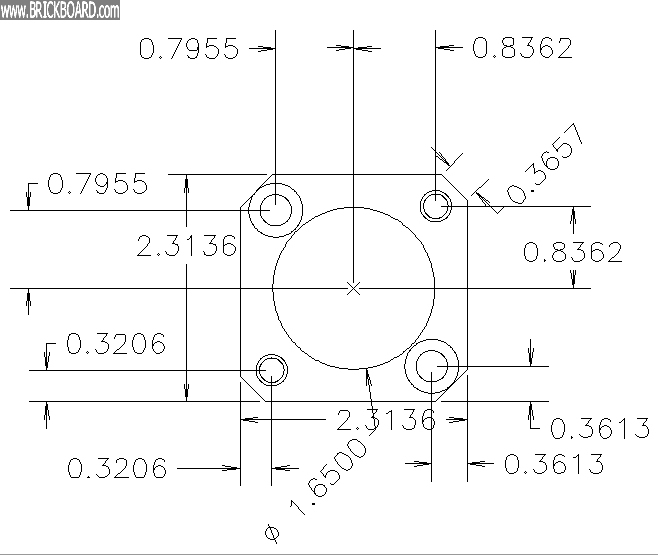

Here is a dimensioned drawing of an adapter for fitting a 164/1800 dual MC to the 122 firewall.
The large circles represent a countersink for 5/16-18 flat head grade 8 socket screws, they must be sub-flush!
the smaller circles represent 5/16-18 threads. Use grade 8 bolts to attached the MC to the adapter too. The plate should be at least 3/8" thick and made from a mild steel for strength. You will have to fabricate a longer rod that goes from the brake pedal fork to the MC of the proper length, and adjust it properly.
Disclaimer-use this at your own risk. It is designed for off road/recreational use only!

Cheers!
OK
PS All dimensions are in decimal inches.
