940 In-Tank Fuel Pump Failure: Some Pics

posted by lucid on Sat Jun 6 10:28 CST 2009
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS]

[IGNORE ALL POSTS]

last visit: Fri Oct 24 12:31 CST 2014

[RELATED]

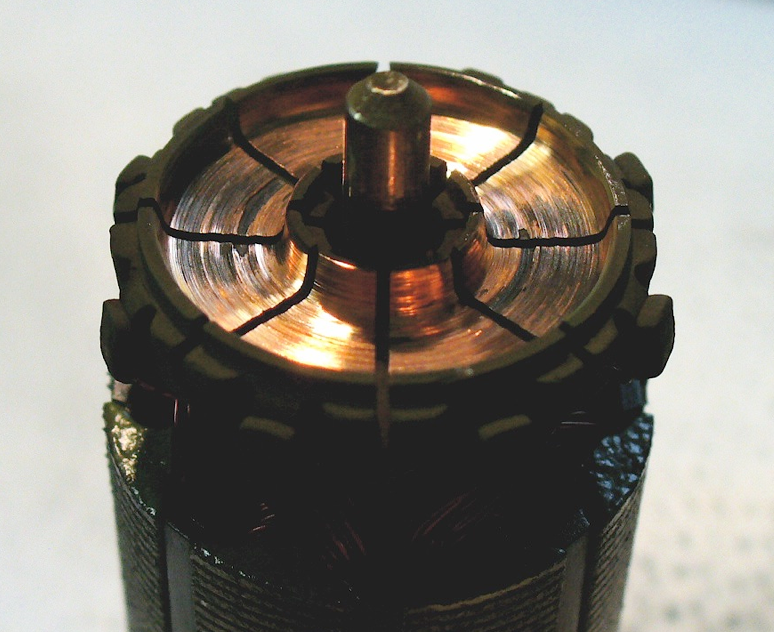

I opened the 200K Regina pump mentioned above for some pictures. #1 shows the commutator wear—about .065" measured by vernier calipers. The remaining groove depth looks like about .025" or less.

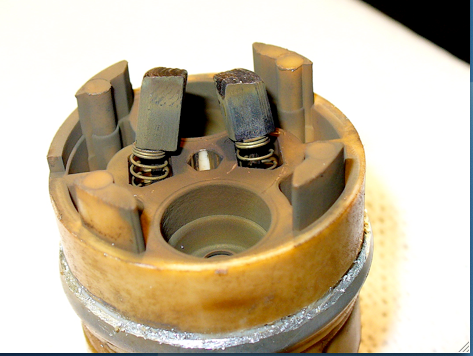

I think the opposing darker surfaces in picture #1 may be the "dead zone" that caused the no-start, especially when looking at the shorter brush in picture #2, which picture #3 shows as making only about 25% contact.

Wonder what an ammeter would have shown when it was running?

Picture #1

http://i157.photobucket.com/albums/t71/lucid_photo/Picture3.png?t=1244323306

Picture #2

Picture #3

--
Bruce Young, '93 940-NA (current), 240s (one V8), 140s, 122s, since '63.
