bosch electronic ignition in 142 problem 140-160

posted by  malloy1 on  Tue Feb 1 22:22 CST 2011
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
last visit: Sun Oct 12 17:44 CST 2014
[RELATED]

Seems there is a discussion here a couple of years ago on how the Vclassic article was written:

http://www.brickboard.com/RWD/volvo/871435/120-130/bosch_electronic_ignition_distributor.html

Basically, it states to do it like in the 240 greenbooks (no need for a diode):

http://www.k-jet.org/documents/greenbooks/200-series/

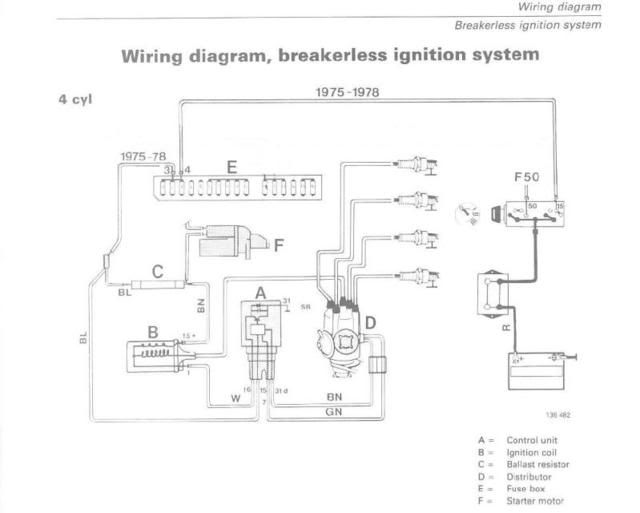

This will give you the PDF you need (wiring diagram is on page 55):

http://www.k-jet.org/files/greenbooks/TP30432-2_ignition_systems.pdf

Photobucket

If that doesn't help, I have a complete '75 240 ignition setup with all the wires attached, I tested it, and it works. So, I can take some pictures of how it's set up.

Paul






THREADED THREADED EXPANDED FLAT PRINT ALL
MESSAGES IN THIS THREAD

New bosch electronic ignition in 142 problem [140-160]
posted by  someone claiming to be slwrcar  on Wed Jan 26 00:28 CST 2011 >


<< < > >>
