who has experience with electric cooling fan instead of engine driven fan. 120-130

I'm planning on replacing my electric fan and adjustable thermostat with the following:

flex-a-lite model 140 (12-inch electric pusher fan->does not include the thermostat switch) $107-Summit racing(http://store.summitracing.com/default.asp?Ntt=flex-a-lite+130&Ntk=KeywordSearch&DDS=1&searchinresults=false&N=0&target=egnsearch.asp&x=31&y=11)
-> I would keep away from the mount "through-the-radiator" type of electric fans. It will cause the radiator to leak -> the reason I'm switching.

Saab 900 (79-94) Radiator fan switch- $13-The Saab Site (It mounts into the radiators of Saabs, but it's the same thread as Saab 900 (79-94) A/C cut-off switch holder thread. So, it mounts right in. Will turn fan on at 82 degrees C (180F) and off at 77 degrees C (170F)
(http://www.thesaabsite.com/900old/c900heating-cooling.htm)
Part number 547572/82 (900 79-94 Thermo Contact Switch 16V opens 77-82 degrees Townsend recommendation)-> also available in different temperature ranges (87/92 degree C).

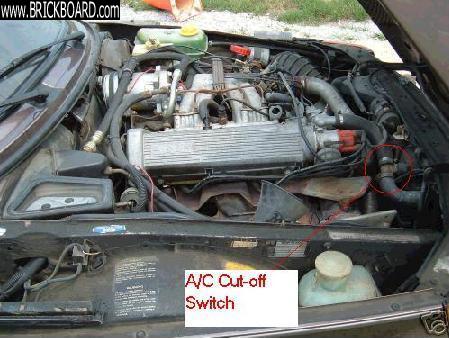

Saab 900 (79-94) A/C cut-off switch holder - $15 from the junkyard(This is a switch holder mounted in the upper radiator hose to shut off the A/C if the engine gets too hot. The switch can't be used because it only shuts off at a certain temperature. I'm told that this setup works best when switch is mounted in the lower radiator hose.)



Bosch Relay (#0332209159 20/30A)-$5 (to run the fan)

The switch in the hose seems to be a better setup than the thermostat switch that is stuck on the outside of the radiator.

Paul










THREADED THREADED EXPANDED FLAT PRINT ALL
MESSAGES IN THIS THREAD

New who has experience with electric cooling fan instead of engine driven fan. [120-130]
posted by  Patrick of Mtl  on Mon Aug 8 06:57 CST 2005 >


<< < > >>
